    Spiral plate heat exchanger

         Spiral plate heat exchanger is a highly efficient heat exchanger equipment for steam - steam, gas - liquid, liquid - liquid, the liquid heat transfer. It is suitable for chemical, oil, solvents, pharmaceuticals, food, light industry, textile, metallurgy, steel rolling, coking and other industries. According to the structure can be divided into non-split type (Ⅰ type) spiral plate and removable (Ⅱ type, Ⅲ type) spiral plate heat exchanger.

         Spiral plate heat exchanger using proven through years of practice, is indeed a highly efficient heat transfer equipment, it applies to chemical, oil, solvents, pharmaceuticals, food, light industry, textile, metallurgy, steel rolling, coking and other industry applications. Draw contemporary international advanced heat exchanger technology, the unique optimal design and manufacture of liquid - liquid, steam - water heat exchanger. Product structure according to Swedish technology, "Al Farah generation" company standards, end-use fold spiral plate welding, "top from the column" special process for the charge storage capacitor contactor, to improve the quality of the inner and outer "Baosteel" recognized, can replace imports.
          Can not be demolished by the spiral plate heat exchanger is - Mechanized Division Standard JB/TQ724-89 can not be demolished spiral plate heat exchanger in the form, the basic parameters and dimensions of the design requirements, it has made a simple, low cost, small size and heat transfer performance, etc., but also has its shortcomings, for example, can not be machine washed, broken easy maintenance, etc., selection should be based on the actual situation of the project specific selection of equipment to make the most effective.
    Structure and Performance
        1, the device applies to: liquid - liquid, gas - gas, gas - liquid convective heat transfer fluid can be used for steam condensation and evaporation heat transfer, chemical, petroleum, pharmaceutical, mechanical, electrical, light industry and textile industry can be use.
        2, this device is made by the two steel rolling, forming two uniform spiral channel, two kinds of heat transfer can be full cut-off counter-current flow for a small temperature difference between heat transfer, easy and accurate recovery of low temperature heat source to control the outlet temperature .
        3, the shell is cut to a receiver on the structure of local resistance is small, the curvature of the spiral channel is uniform, the fluid flow in the device no major change to the total resistance, which can improve the design flow so that with more high heat transfer capacity.
        4, the spiral channel ends are welded seal, sealing performance and reliable structure.
        5, is not easy to repair, especially when problems arise within the board is extremely difficult to repair, some plant Weld the ends of all the cars off the device and re-welding the plate and then roll flattening, this consumption of working hours too, because selection spiral plate heat exchanger corrosion is very important.
        6, can not be machine washed, production proven, and the general spiral plate heat exchanger tube heat exchanger is not easy compared to plug, especially sand, shells and other small suspended particles in the spiral channel impurity deposition is not easy, analysis of the reasons; first, because it is a single impurity in the deposition of a channel forming stream flow will also be increased to flush it, the second accident because there are no dead ends spiral channel, impurities likely to be out.
        7, because the spiral channel with fixed channel spacing from the support column, not a rejection of the fibrous impurities (cotton, grass and sticks, leaves, etc.) into the heat exchanger inside.
        8, the strict control of the cooling water outlet temperature in the temperature scale below.
        9, a common cleaning method is to use the net or caustic steam blowing, blowing steam to take over, blow out the impurities from within the device, many use the factory that this is an effective way.
    Detachable (Ⅱ type, Ⅲ type) spiral plate heat exchanger
          Principle and structure can not be demolished heat exchanger is basically the same, but can open channel cleaning, sealed at both ends of the first seal. Especially for sticky, with precipitation of liquid and liquid-liquid exchange, and gas-liquid, vapor condensation. As the need to add a removable heat exchanger head, flange and other components, equipment costs than larger heat exchanger can not be removed.
    Basic parameters
          Spiral plate heat exchanger Nominal pressure PN defined as 0.6,1,1.6,2.5 Mpa (ie the original 6,10,16,25 kg/cm2) (refers to single-channel with the maximum working pressure) test pressure for the working pressure of 1.25 times.
          Spiral plate heat exchanger and the media access part of the material, carbon steel for the Q235A, Q235AF, stainless steel acid as SUS321, SUS304. Other materials can be selected according to user requirements.
          Permissible operating temperature: carbon steel, t = 0 ~ +350 ℃, stainless steel, acid t =- 40 ~ 500 ℃, temperature step-down range of pressure vessels according to the relevant provisions. Use this equipment, contact should be through the process when the calculation of fluid within the device channel to reach the turbulent state. (Usually gas flow rate of liquid flow rate 1m/Sec 10m/Sec).
          Single piece of equipment can not meet the requirements, you can use more than one combination, but the combination must meet the following requirements:
          Parallel combination of series combination: the same equipment and channel spacing. Hybrid combination of: a parallel channel, a channel in series.

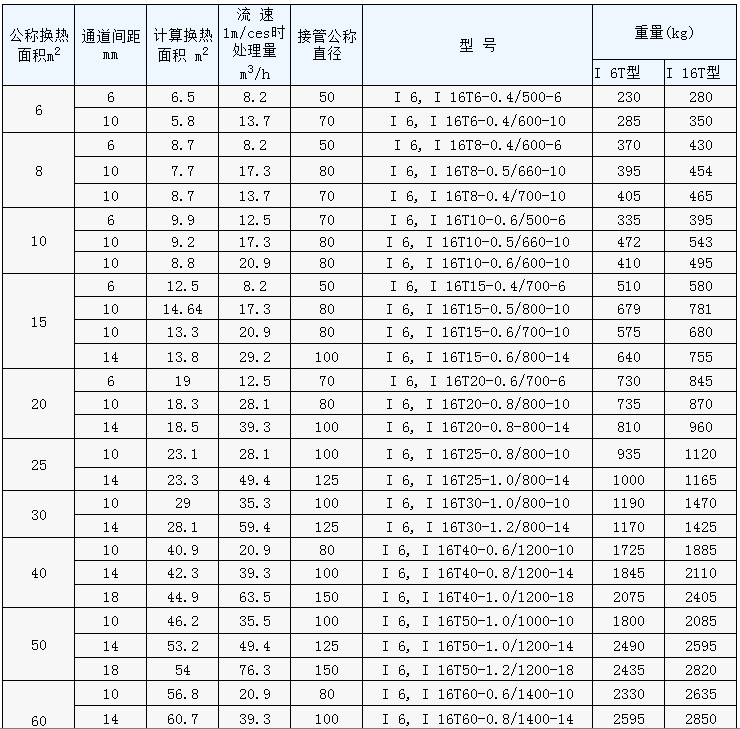

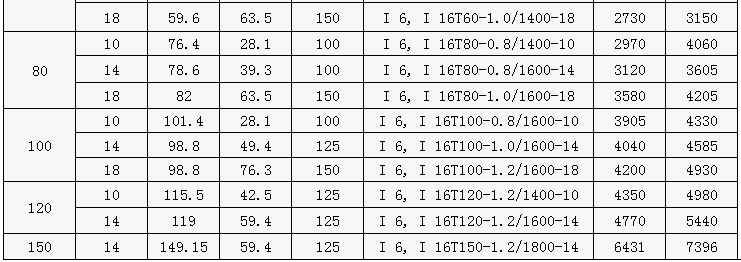

          Acid-resistant stainless steel PN0.6, 1.6MPa can not be demolished (Ⅰ type) spiral plate heat exchanger.
